Excavator Main Control Valve

New KMX15R Kawasaki Main Control Valve Sany SY305 SY335

Brand New KMX15R Kawasaki Main Control Valve Sany SY305 SY335

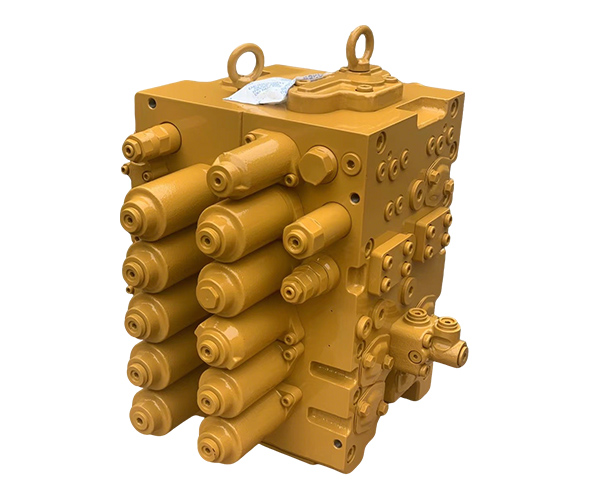

KMX15R Kawasaki Main Control Multi‑way Valve

This is Japan Kawasaki KMX15R hydraulic main control valve, core hydraulic distribution component for 30‑ton excavators, compatible with Sany SY305, SY335 excavator. Integrated main relief valve, spool assemblies, shuttle valve and oil regeneration circuit. Supports straight travel, swing priority and flow confluence function, delivers smooth and precise control for boom, arm, bucket and travelling movements.

High‑precision cast valve body and matched spools, superior sealing performance to reduce internal leakage. Every unit passes strict hydraulic pressure test before shipment for stable heavy‑duty performance.

Main Specifications

‑ Model: KMX15R ‑ Brand: Kawasaki (Japan) ‑ Max Working Pressure: 37 MPa ‑ Rated Flow: 300 L/min ‑ Weight: approx 220 kg

Inquiry Now Contact Us

Product Details

Compatible Excavator Models

‑ Sany: SY305, SY335, SY285, SY365

Important Reminder: KMX15R has multiple variants including KMX15RA, KMX15RB. Please confirm original part number, port layout and valve tag before placing order to avoid mismatch.

Installation Notes

  1. Inspect valve body for shipping damage, verify model and tag information match original valve.
  2. Clean all connecting ports thoroughly, remove dirt and metal debris to prevent spool stuck.
  3. Replace all O‑rings and gaskets, do not reuse old seals.
  4. Connect hydraulic hoses strictly follow port marking. Wrong connection will cause abnormal machine actions.
  5. Tighten mounting bolts with cross‑torque according to official service manual.
  6. Flush hydraulic pipeline, replace hydraulic oil and filter after installation.
  7. Fill clean hydraulic oil, run engine at low idle speed to bleed air, avoid full‑load operation at the beginning.
  8. Test all working movements, check oil leakage and abnormal noise. Stop operation once abnormality occurs.

We supply brand‑new aftermarket Kawasaki type main control valve. Wholesale & small orders acceptable, fast global shipping.
