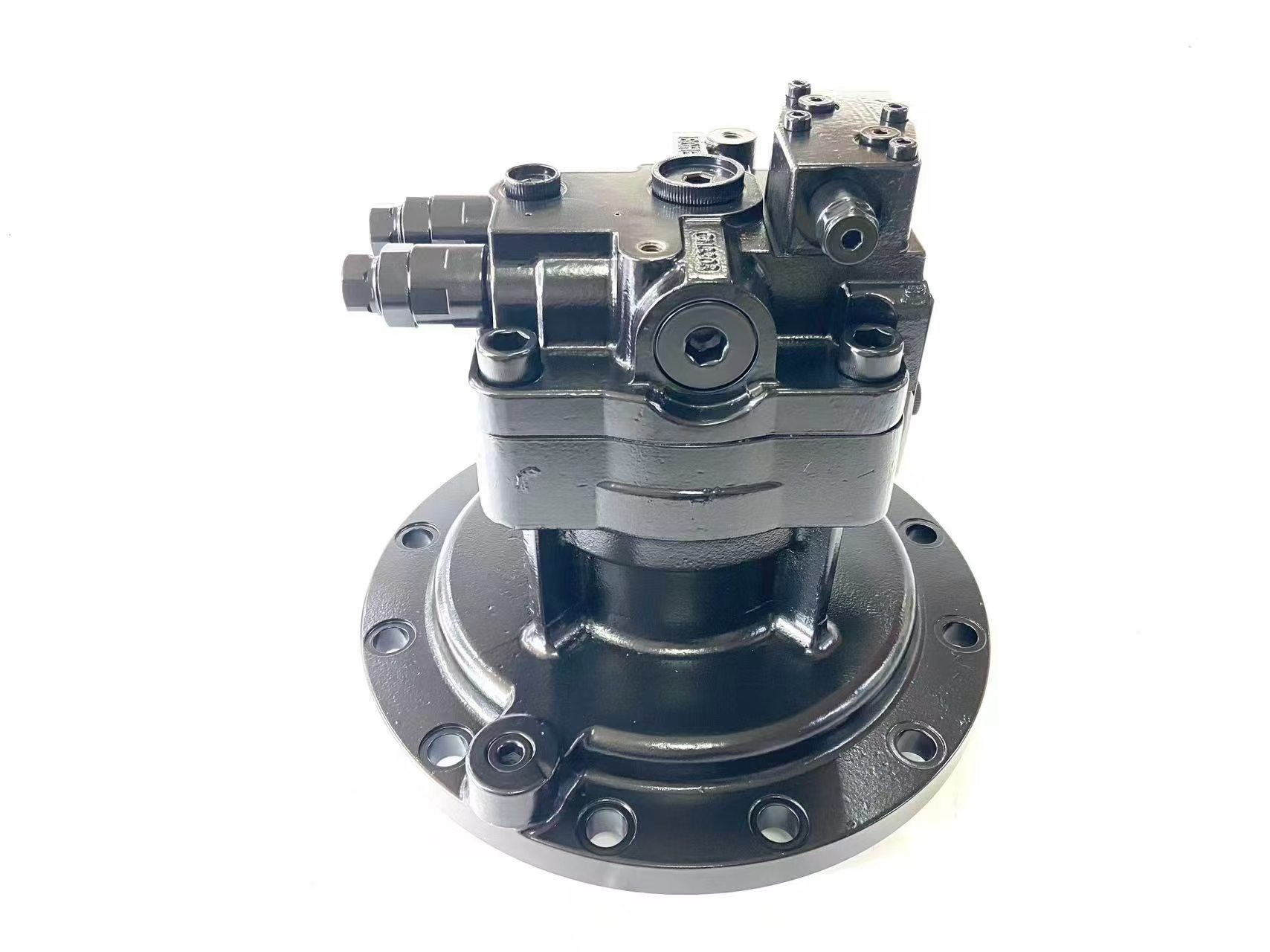

5874953 SWING MOTOR CAT 320GX/GC EXCAVATOR M5X130

587‑4953 M5X130 Swing Motor for CAT 320GX 320GC Excavator Machine spare parts

This M5X130 hydraulic swing motor is Kawasaki‑type axial piston slew motor, part number 587‑4953. It integrates built‑in mechanical swing brake, relief valve and make‑up valve, compact structure, direct mounting to swing reduction gearbox. Excellent anti‑shock performance, stable swing torque for 20‑ton class excavator heavy‑duty working conditions.

Adopts high‑precision piston cylinder components, heat‑treated valve plate and premium sealing groups. Each unit undergoes strict hydraulic pressure test before shipment to minimize oil leakage risk and extend service life.

Main Technical Parameters

‑ Model: M5X130 ‑ Displacement: 129.2 cm³/rev ‑ Rated Pressure: 32.4 MPa ‑ Max Pressure: 39.2 MPa ‑ Max Speed: 1850 rpm ‑ Weight: approx 44 kg

Compatible Excavator Models

‑ Caterpillar: 320GC, 320GX, 323GC, 323GX

Interchangeable part number: 536‑7286Alibaba.co...

Important Reminder

Please confirm part number, shaft spline and port position before placing order. Different serial number machines may have different motor versions.

Installation Notes

  1. Inspect motor for shipping damage before installation. Verify part number, spline and port match original unit.
  2. Clean mounting surface thoroughly, remove dirt and metal debris.
  3. Replace all O‑rings and seals. Do not reuse old seals.
  4. Connect hydraulic hoses strictly according to port marking. Wrong hose connection will cause swing failure.
  5. Torque mounting bolts cross‑referenced following machine service manual specification. Thread locker is recommended.
  6. Fill clean hydraulic oil into motor housing prior to startup. Dry running will damage internal parts permanently.
  7. Replace hydraulic filter and flush pipeline to clear metal contaminants.
  8. After installation, run machine at low idle speed to bleed air from hydraulic circuit. Do not apply full‑load swing immediately.
  9. Check oil leakage, abnormal noise and vibration during test run. Stop operation once any abnormality appears.
  10. Ensure case drain line is unobstructed, blocked drain line will blow out seals and destroy motor.

We supply brand‑new aftermarket assembly. Wholesale & small orders acceptable, fast global shipping.
